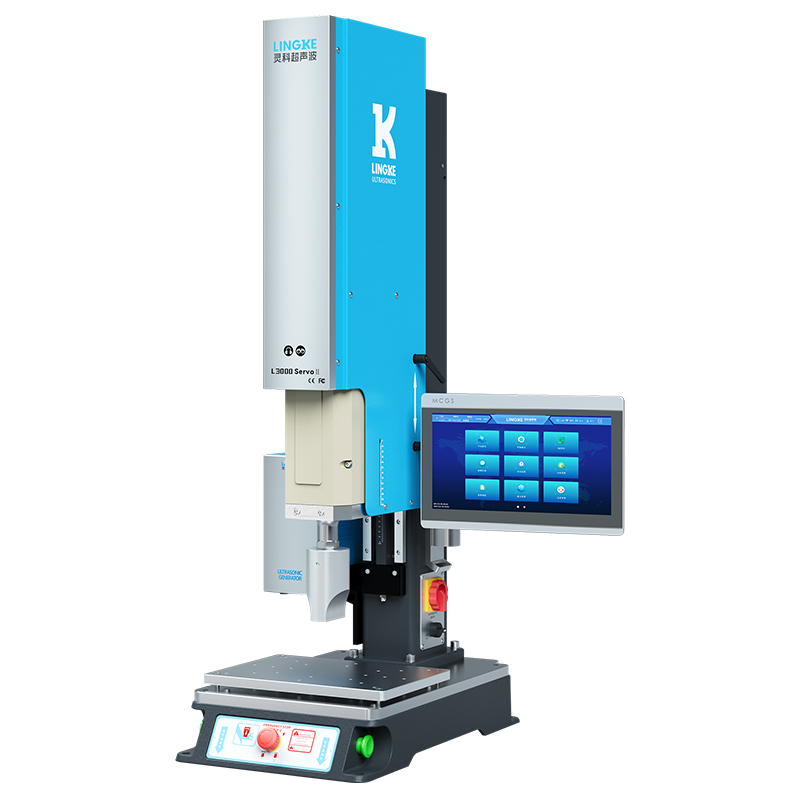

15kHz-3000W L3000 ServoⅡ Lingke servo ultrasonic plastic welding machine
-
-
01 High-precision servo motor, stable output, precise control of welding speed and stroke
02Digital intelligent control system, equipped with 15.6-inch full-color high-definition touch screen
037 welding modes: time, energy, vibration stop, Xn, multi-stroke, absolute stroke, differential stroke
04 The system is equipped with signal ports such as safety gratings, soundproof covers, bottom film welding parts detection, and film rolls.
05 Can monitor welding frequency, time, energy, power, stroke, pressure and other status output parameters
06 Upper and lower limits can be set for welding parameters. The system automatically determines whether the welding effect is qualified or not based on the limit values and gives a judgment signal.
07 The system supports welding formula setting, storage and export functions. The formula can be called according to needs. Intelligent electronic control of lifting and lowering makes mold adjustment convenient and fast.
08Comply with international CE and FCC certification standards
L3000 ServoⅡ Lingke servo ultrasonic plastic welding machine
——Frequency/Power: 15kHz - 3000W
|
機型 Model |
L3000 ServoⅡ SERVO |
|||
|
頻率 Frequency |
20kHz |
15kHz |
||
|
功率 Power |
2000W |
3000W |
3000W |
|
|
輸入電壓 Input Voltage |
AC220V |
AC220V |
AC220V |
|
|
電缸規格 Cylinder Size (mm) |
50 X 100 |
50 X 100 |
50 X 100 |
|
|
機身行程 Machine Journey |
511mm |
511mm |
511mm |
|
|
輸出時間 Oscillation Time |
0.01-9.99s |
0.01-9.99s |
0.01-9.99s |
|
|
焊接面積 Welding Capability |
Φ170mm |
Φ300mm |
Φ300mm |
|
|
操作開關 Operation Switch |
雙手啟動，前部有緊急制動，也可附加外部開關 Two-hand release,emergency stop button at the front,and adding extemal control switch supported. |
|||
|
外形尺寸 Size(mm) |
壓機 Press |
680 X 400 X 1656 |
||
|
電箱（數字機型） Generator (Digital Type) |
436 X 124 X 270 |
|||
|
淨重 Weight |
數字機型壓機 (Digital Press) |
162.5kg |
||
|
電箱（數字機型） Generator (Digital Type) |
8kg |
|||
|
工作模式 Mode |
時間模式/能量模式/停振模式/Xn模式/多行程模式/絕對行程模式/差動行程模式 Time Mode/Energy Mode/US-Stop/Xn Mode/Multi-travel mode/Absolute |
|||
