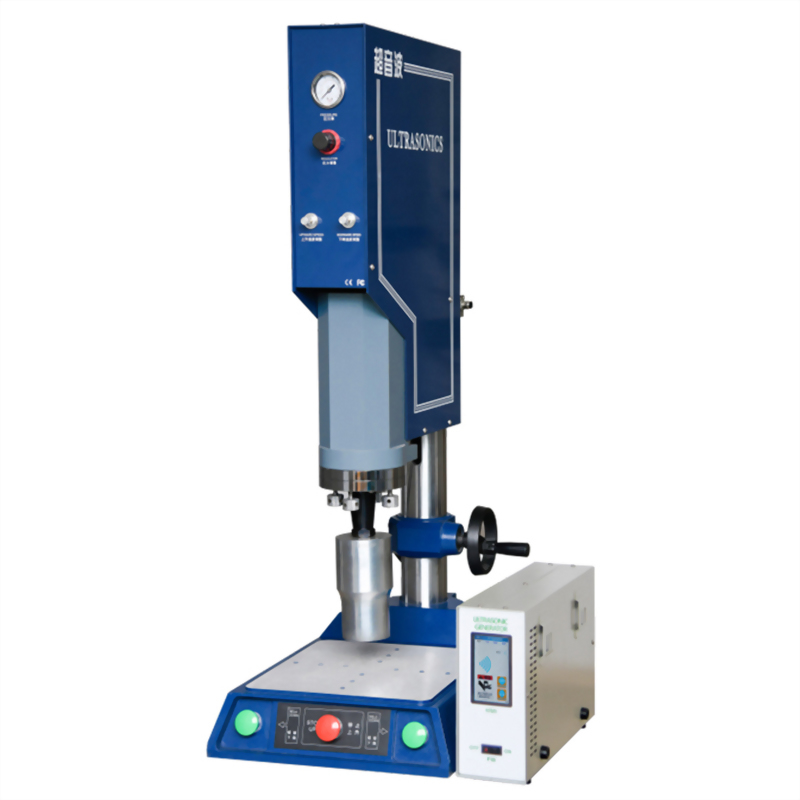

15kHz-2600/3200W EO2000 Easy digital sound peak ultrasonic plastic welding machine (level adjustable)
-
-
01 Starting method: Two-hand starting method that complies with CE standards
02 Language: Chinese/English and other languages can be customized
03Design intelligent monitoring/adjustment program to ensure stable ultrasonic energy output
04 System welding amplitude: 10-100% adjustable, 20% increase can be set in the background
05 Round column: Use cast iron to thicken the column seat to ensure rigidity and accuracy.
06 Welding stroke: 575mm (Max), the body stroke is adjustable, the cylinder linear action stroke is 75-100mm, and the welding versatility is strong
07 Processing method: Core machined components such as the base and machine base adopt heavy pressure casting technology to enhance the structural mechanical properties.
08 Compliant with communication: equipped with "485" communication port, which can be controlled by external touch screen. It has non-standard mode and can be used in automated production lines.
EO2000 Easy digital sound peak ultrasonic plastic welding machine (level adjustable)
——Frequency/Power: 15kHz - 2600/3200W
|
機型 Model |
EO2000 Easy Digital type |
||||||
|
頻率 Frequency |
20kHz |
15kHz |
|||||
|
功率 Power |
2000W |
2600W |
2600W落地款 |
2600W |
3200W |
3200W落地款 |
|
|
輸入電壓 Input Voltage |
AC220V |
AC220V |
AC220V |
AC220V |
AC220V |
AC220V |
|
|
氣缸規格 Cylinder Size (mm) |
63 X 75 | 63 X 75 | 63 X 75 | 63 X 75 | 80 X 75 | 80 X 75 | |
|
機身行程 Machine Journey |
90-550mm |
90-550mm | 90-550mm |
120-510mm |
120-510mm | 120-510mm | |
|
輸出時間 Oscillation Time |
0.01-9.99s |
0.01-9.99s |
0.01-9.99s |
0.01-9.99s |
0.01-9.99s |
0.01-9.99s |
|
|
輸入氣壓 Air Pressure |
＞1，≤7 bar |
＞1，≤7 bar |
＞1，≤7 bar |
＞1，≤7 bar |
＞1，≤7 bar |
＞1，≤7 bar |
|
|
焊接面積 Welding Capability |
Φ170mm |
Φ220mm |
Φ220mm |
Φ220mm |
Φ300mm |
Φ300mm |
|
|
操作開關 Operation Switch |
雙手啟動，前部有緊急制動，也可附加外部開關 Two-hand release,emergency stop button at the front,and adding extemal control switch supported. |
||||||
|
外形尺寸 Size(mm) |
壓機 Press |
580 X 405 X 1450 |
580 X 405 X 1450 |
860 X 650 X 2250 |
580 X 405 X 1450 |
680 X 405 X 1450 |
860 X 650 X 2250 |
|
電箱（數字機型） Generator (Digital Type) |
410 X 260 X 120 |
410 X 260 X 120 | 410 X 260 X 120 | 410 X 260 X 120 | 425 X 325 X 120 | 425 X 325 X 120 | |
|
淨重 Weight |
數字機型壓機 (Digital Press) |
71.5kg |
82.5kg | 168kg | 82.5kg | 87kg |
199kg |
|
電箱（數字機型） Generator (Digital Type) |
7.5kg |
7.5kg | 7.5kg | 7.5kg | 10kg | 10kg | |
|
工作模式 Mode |
數字機型：時間模式/能量模式 Digital Type：Time Mode/Energy Mode |
||||||
